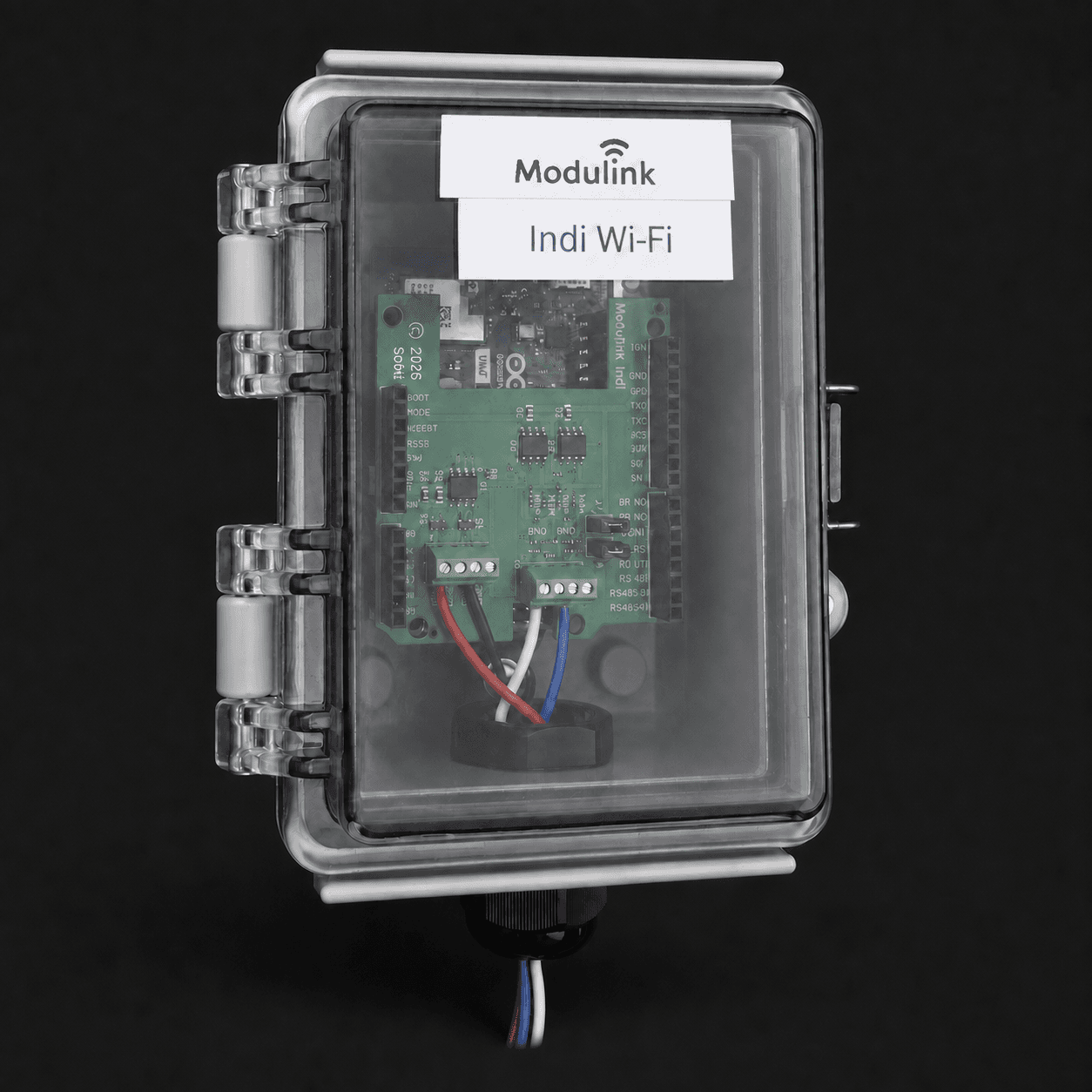

Modulink Indi Wi-Fi
Connect industrial sensors and motor or actuator interfaces to your on-site Modulink Basestation using your site’s Wi-Fi network.
- Power:
- Line-powered operation.
- Shared hub:
- Requires an on-site Modulink Basestation.
- Control:
- H-bridge interface for compatible motors and actuators.
Features and specifications
- Current inputs
- 2 independently wired 4–20 mA sensor-input channels.
- Input configuration
- Per-channel selection for inline current-loop or endpoint / ground-referenced wiring.
- Control output
- 1 H-bridge motor/actuator interface with a 1 A current limit and two output terminals for compatible equipment.
- Control feedback
- Output-current sensing and programmable current-reference control.
- Power
- Supports standard 12 V or 24 V industrial DC power supplies. The control output uses the terminal supply rail.
- Enclosure
- 2.76"D × 3.54"W × 2.76"H (external dimensions)
- Wi-Fi connectivity
- Dual-band 2.4 GHz / 5 GHz Wi-Fi 5 (802.11ac), connecting to the Modulink Basestation through the site network.
- Application fit
- Industrial instrumentation and control where reliable Wi-Fi coverage and higher data rates are needed.
- Edge AI
- Custom Edge AI Skills can be developed on request for Modulink Indi Wi-Fi. Discuss your application.
- Warranty
- One-year limited warranty against manufacturing defects. Coverage and exclusions.
Industrial Intelligence dashboard
View readings, trends and history, receive alerts, and manage equipment through the on-site Basestation. Connect your database or applications through the API.
Dashboard example from the Falcon deployment. Open the full image to inspect the readings and trends.
Read the deployment profileWhere Modulink Indi Wi-Fi fits
- Process equipment within reliable on-site Wi-Fi coverage
- Applications that need higher data rates
- Facilities using an existing Wi-Fi network
Control interfaces
Monitor industrial sensors and operate compatible motor or actuator interfaces through the same on-site workflow. Interface suitability depends on the connected equipment.
Control is for non-safety-critical applications. Required safety interlocks remain independent of Modulink.
