Indi LoRa
Distributed industrial assets
A fit for low data rate applications with distributed equipment beyond practical on-site Wi-Fi coverage.
Line-powered assetModulink Basestation

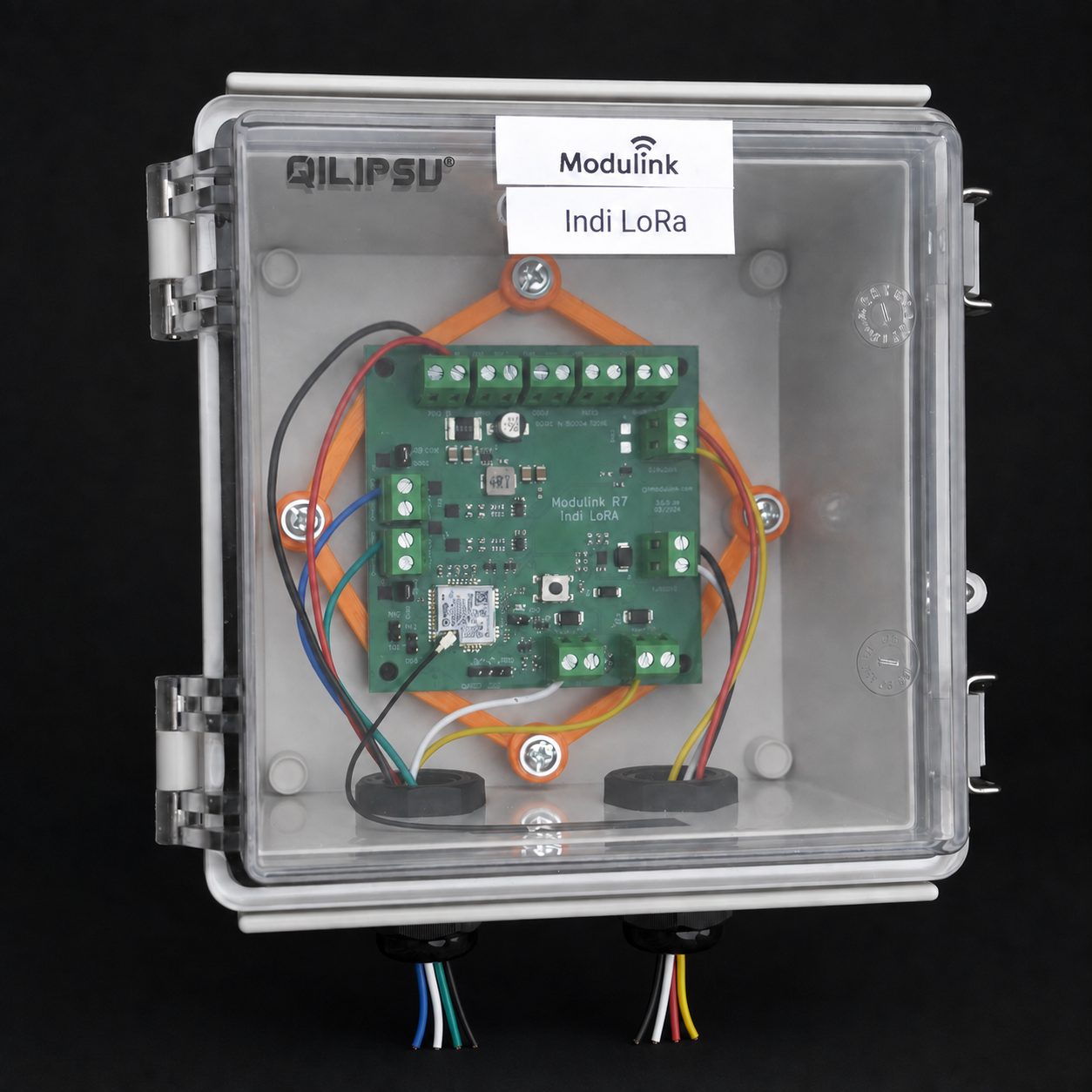

Modulink Indi LoRa
Connect distributed industrial sensors and control interfaces to your on-site Modulink Basestation wirelessly using LoRa for long range at low data rates.
- Power:
- Line-powered operation.
- Shared hub:
- Requires an on-site Modulink Basestation.
- Control:
- Analog output and external relay-driver interfaces; no direct motor drive.
Why LoRa?
Choose a connection based on where your equipment sits and how much data your application needs. Both Indi options use line power and an on-site Modulink Basestation.
Indi Wi-Fi
Equipment within reliable Wi-Fi
A fit for higher data rate applications when equipment is already inside the site's reliable Wi-Fi footprint.
Line-powered equipmentModulink Basestation
Coverage depends on installation. Confirm equipment interfaces before selecting the connection path; Indi LoRa and Indi Wi-Fi are separate options, not interchangeable interfaces.
Features and specifications
- Current inputs
- 2 independently wired passive 4–20 mA inputs.
- Voltage inputs
- 2 ground-referenced 0–10 V inputs.
- Analog output
- One configurable output, selectable as:
- 4–20 mA current source
- or 0–10 V voltage output
- Relay interface
- One nominal 24 V relay-driver output for an approved external SPDT relay, providing common (COM), normally open (NO) and normally closed (NC) dry contacts.
- Power
- Nominal 24 VDC line power.
- Input range: 19.2–32 VDC
- Enclosure
- 150 × 150 × 90 mm (external): 5.9" × 5.9" × 3.5"
- Field power connections
- 4 protected AUX supply passthrough connections, with a shared 500 mA aggregate installation limit. AUX follows the field supply.
- Connectivity
- LoRaWAN US915
- Equipment integration
- Signal-level I/O for compatible instruments and control equipment; not a direct motor, valve or solenoid power driver.
- Warranty
- One-year limited warranty against manufacturing defects. Coverage and exclusions.

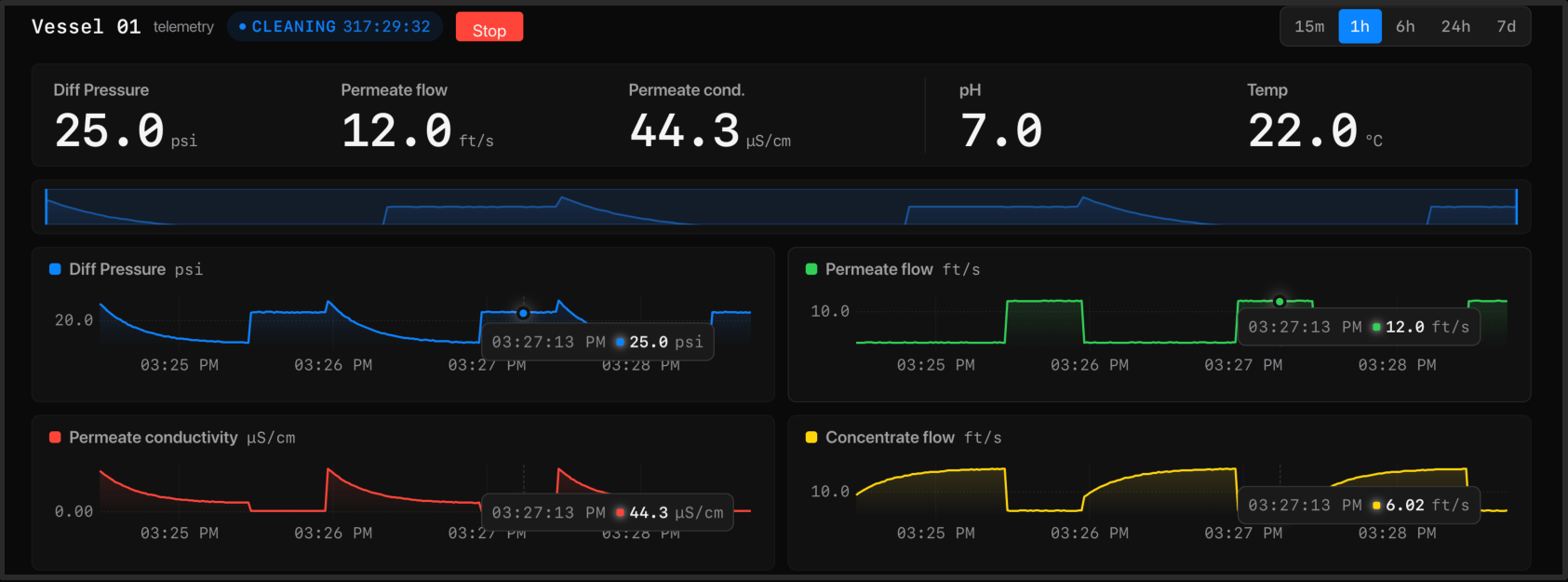

Industrial Intelligence dashboard
View readings, trends and history, receive alerts, and manage equipment through the on-site Basestation. Connect your database or applications through the API.

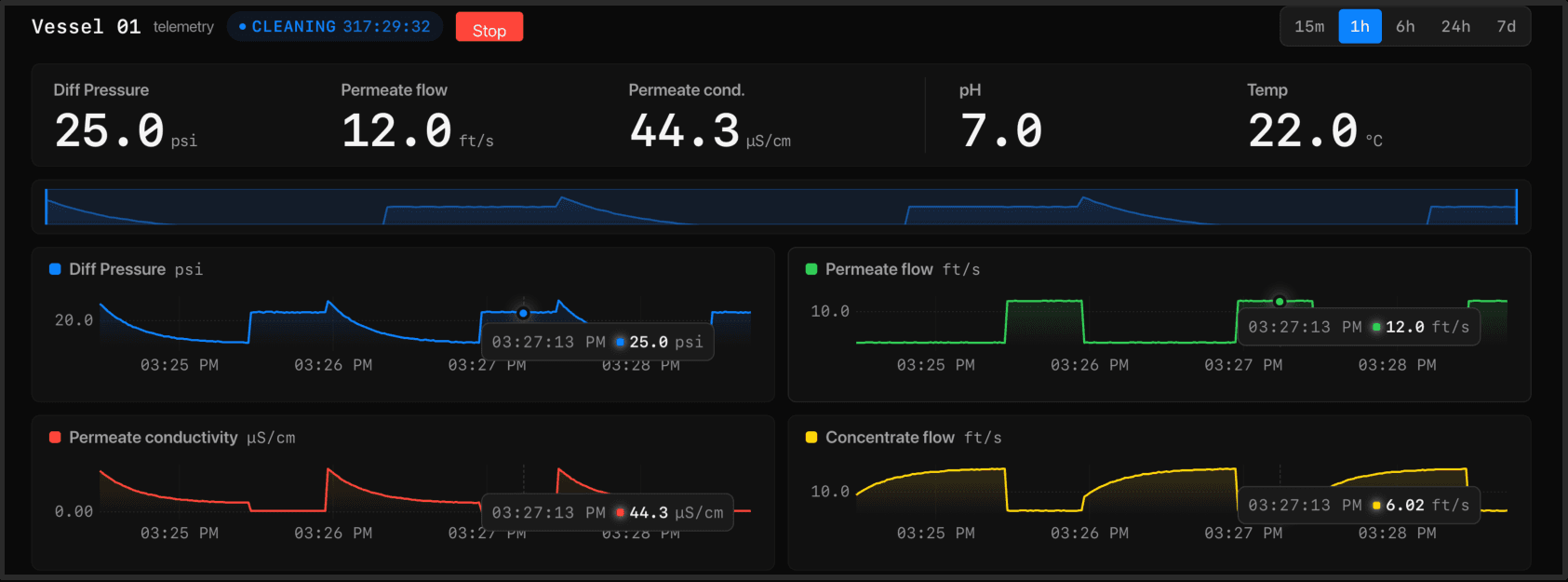

Dashboard example from the Falcon deployment. Open the full image to inspect the readings and trends.
Read the deployment profileWhere Modulink Indi LoRa fits
- Distributed tanks, utilities and industrial assets
- Locations beyond practical on-site Wi-Fi coverage
- Monitoring and control workflows suited to lower data rates
Control interfaces
Use analog output and relay-driver interfaces to connect compatible control equipment. This configuration does not directly drive motors.
Control is for non-safety-critical applications. Required safety interlocks remain independent of Modulink.
A battery-powered Indi LoRa configuration is planned separately. The current offering requires line power.
