Self-hosted. Single-tenant.
Edge to application.
Modulink is a modular industrial telemetry and automation stack. Hardware connects your equipment. Core handles ingestion, messaging, and a base interface — free. Skills turn that data into operator outcomes. Everything runs on your hardware.
Architecture
One system. Fully integrated.
Hardware that installs in days. Free Core that runs on-prem as the ingestion and messaging layer. Paid Skills that deliver operator value on top.
Loading architecture diagram...
Field node. Wires to your sensors, transmits encrypted telemetry over private LoRa.
Your own wireless network. 5+ km open-air, 500m–1.5 km indoors. No carrier, no SIM, no fees.
Edge gateway. Runs the full software stack locally. Single-tenant, air-gap capable.
Ingestion and messaging layer. Device provisioning, telemetry pipeline, local time-series storage, base UI. Free.
Application modules. Dashboards, alerting, valve control, field maps. Subscription per Base Station.

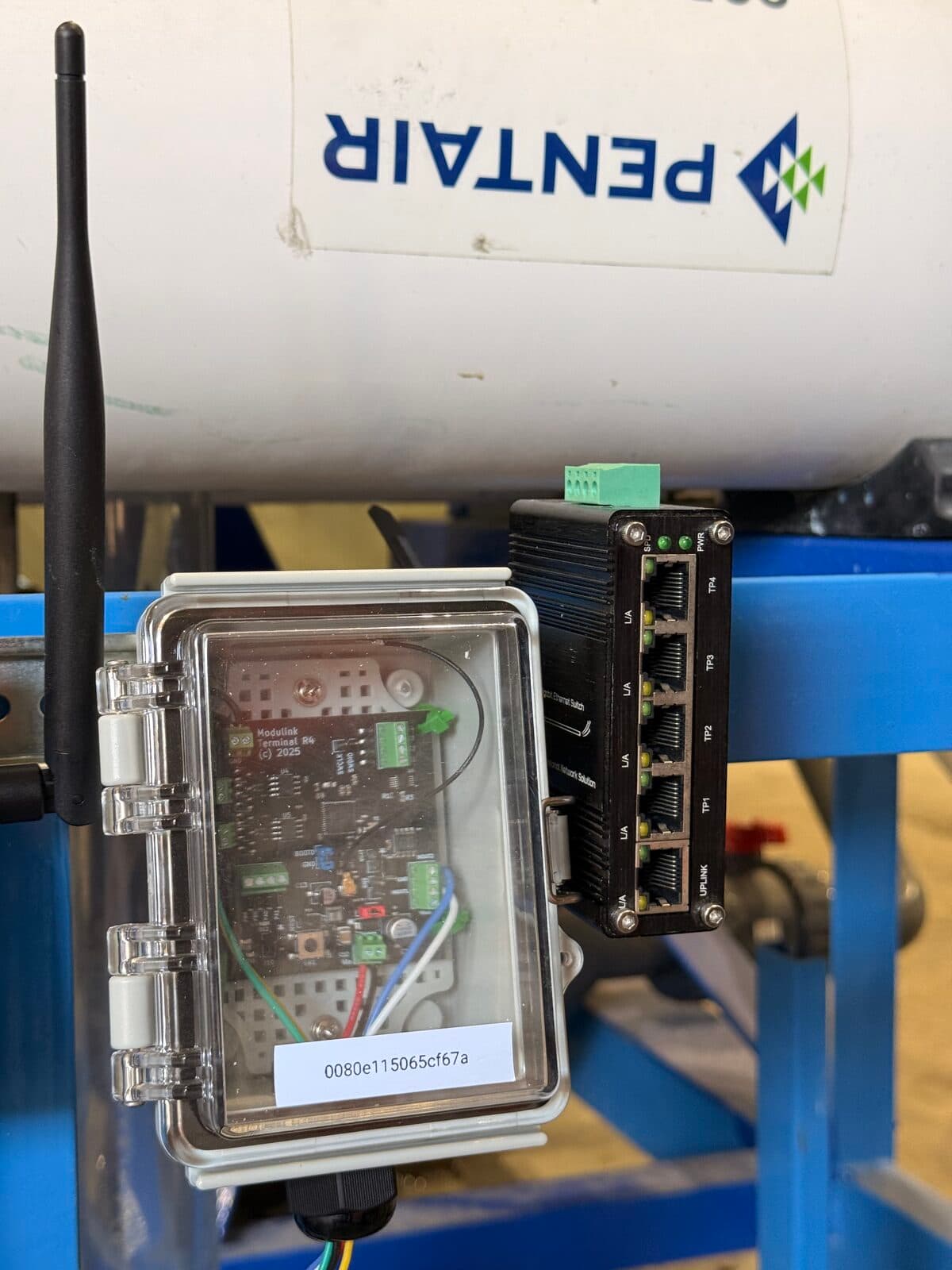

Modulink Terminals
From $500 (globally sourced) · $650 (TAA/NDAA-compliant)
Field nodes that connect to your existing equipment and transmit data over private long-range RF. IP67 enclosure, 12–24V DC power, installs in hours.
I/O Interfaces
Additional Specs
- 22 dBm TX power, 3 dBi patch antenna, 915 MHz LoRa
- AES-128 encrypted RF in transit
- Ruggedized IP67 / NEMA 4X enclosure
- Peripherals (sensors, cabling, connectors) specified per deployment — customer-supplied or sourced by us at 10% markup
Modulink Base Station
From $500 (globally sourced) · $650 (TAA/NDAA-compliant)
The on-site edge server that runs Core and Skills, stores data locally, and serves the operator interface. One Base Station per deployment.
- Industrial-grade gateway with LoRaWAN concentrator
- Single-tenant per deployment — full isolation, no shared infrastructure
- Air-gap capable — operates without internet when specced for full network isolation
- LUKS-encrypted SSD storage
- STIG-hardened base image
- RSA key-based remote access (optional, customer-controlled)
- Ethernet backhaul to site network
Modulink Core
Free
The ingestion and messaging layer. Core handles device provisioning, telemetry pipeline, local time-series storage, and provides a base operator interface. It runs on the Base Station and processes all data locally.
Core includes
- Device provisioning and connectivity (LoRaWAN via ChirpStack)
- Telemetry ingestion and local time-series database
- Device list, device detail, and generic sensor views (pressure, flow, temp, soil tension, etc.)
- Live data, basic charts, and device health signals
- Base operator UI
Core is free. It exists so your fundamental monitoring capability never depends on a subscription. No feature gates on the data layer. If you cancel every Skill, Core keeps running and your data stays intact. By default, aggregated telemetry is shared with Modulink for support and product improvement. Air-gap deployments are available for environments that require full network isolation.
Modulink Skills
Subscription licensed per Base Station
Skills are application modules that turn raw telemetry into operator outcomes. They plug into Core, run on the Base Station, and are activated per deployment. Cancel anytime — Core continues, data stays yours, Skills degrade safely.
CIP Monitor
Skid & Process Monitoring
- Asset grouping and derived metrics
- State engine for process sequencing
- Operator dashboard / HMI
- Valve control with fault detection
Field Intelligence
Agricultural Remote Monitoring
- Fields, zones, and GPS-tagged map views
- Soil tension history and decision support
- Automated valve control with alerting on fault
Alerting
Notifications & Escalation
- SMS, email, and webhook notifications
- Escalation rules and acknowledgement tracking
Custom Skills: Don't see your vertical? Skills are modular by design. Contact us to discuss a custom Skill for your application. We're actively building our roadmap based on customer needs — partnership conversations welcome.
Support and Updates
Annual SLA
First-party production assurance from our team — not outsourced, not third-party. Guaranteed response times and a clear escalation path.
- Priority support and response time SLA
- Security patches and ongoing updates
- Deployment hardening guidance (backup/restore, health monitoring, watchdog)
- Modbus master container for customers who want Modbus integration without building it themselves
Installation and Commissioning
Quoted per project
First-party deployment services when you want it done fast and right. We also provide labeled wiring harnesses and pre-connected sensor packages for self-installation.
- Scoped and quoted per project based on site complexity and Terminal count
- Self-install supported with documentation and pre-built harnesses
- Training available for integrator partners and field staff (e.g., landscapers for agricultural deployments)
Security & Compliance
Modulink is designed for environments where network isolation and data sovereignty matter.
- AES-128 encrypted LoRa RF in transit
- LUKS encryption on Base Station SSD (data at rest)
- RSA key-based remote access (optional, customer-controlled)
- STIG-hardened base image
- Single-tenant architecture — no shared infrastructure, no multi-tenant risk
- Aggregated telemetry shared by default for support and product improvement — air-gap deployments available for full network isolation
For enterprise and government terms — including source escrow, custom SLAs, and TAA/NDAA-compliant hardware configurations — contact us.
No Crippleware.
Core is free. Skills are licensed. Built on standard protocols — Modbus, MQTT, REST. Your data exports cleanly and never gets locked behind proprietary gates.
Cancel Skills, Core keeps running. Cancel everything, export your data. No vendor lock-in, ever.
