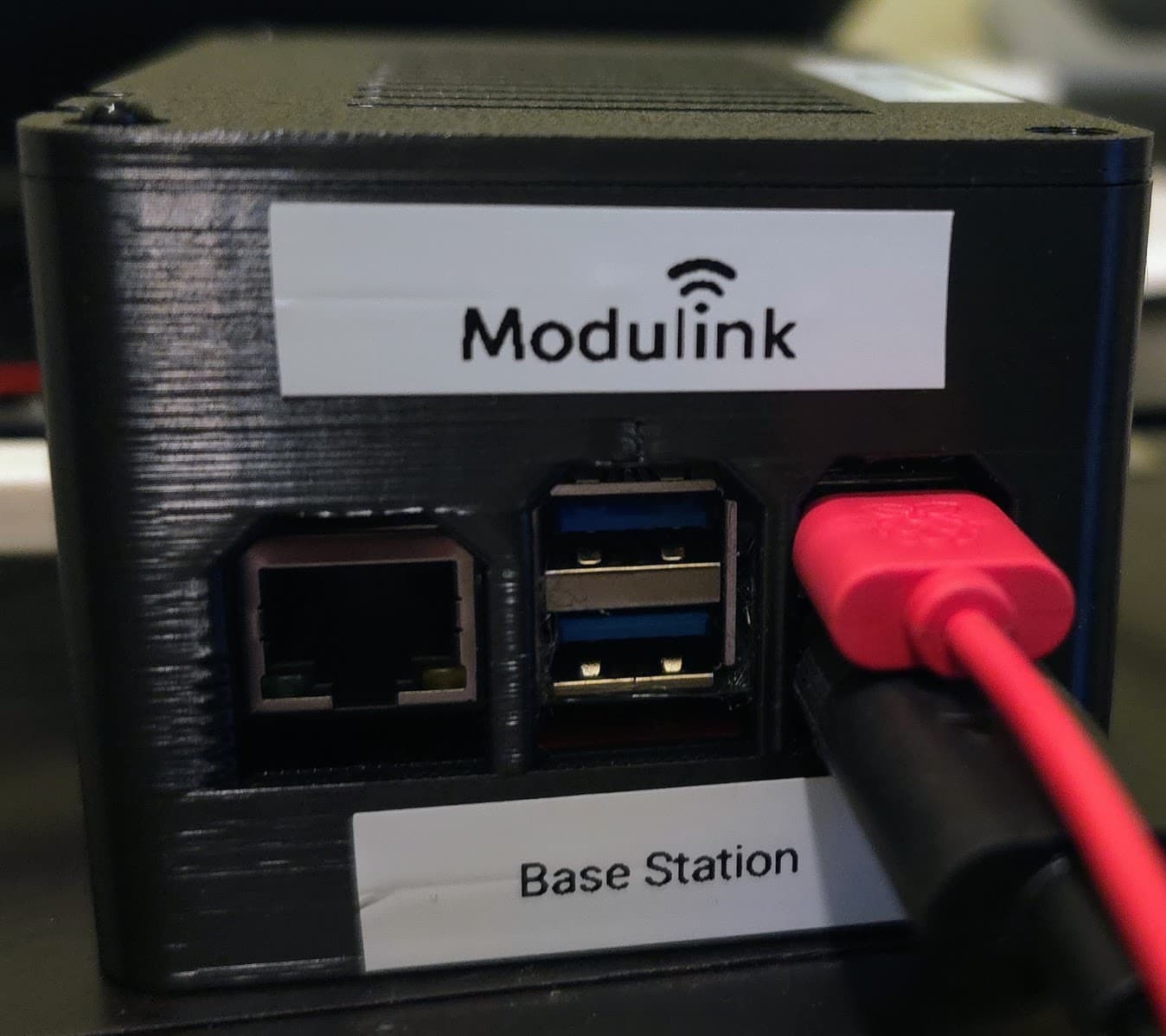

Modulink Basestation
One on-site hub for Indi and Agri terminals. Connect Wi-Fi and LoRa field equipment to dashboards, alerts, history and API access on hardware you own.
- Software:
- Dashboards, readings, history, alerts and user access run on site.
- Field connections:
- Supports both Wi-Fi and LoRa terminals.
- Integration:
- API access for your database and applications.
Features and specifications
- Processor
- 2.4 GHz quad-core processor.
- Memory
- 8 GB RAM.
- LoRaWAN connectivity
- US915 LoRaWAN support for Modulink Agri and Indi LoRa terminals.
- Wi-Fi connectivity
- Dual-band 2.4 GHz / 5 GHz Wi-Fi 5 (802.11ac), supporting Indi Wi-Fi terminals through the site network.
- Ethernet
- 1 Gigabit Ethernet port for a wired connection to your site network.
- USB ports
- 2 USB 3.0 ports and 2 USB 2.0 ports.
- Enclosure (3D printed case)
- 103 × 74 × 55 mm outer dimensions.
- Display ports
- 2 micro-HDMI outputs for local displays.
- Power connection
- USB-C power input.
- On-site software
- Dashboards, live readings, historical data, alerts, secure user access and application-specific Skills.
- Data integration
- API access for your database and applications through the on-site Modulink Basestation.
- Warranty
- One-year limited warranty against manufacturing defects. Coverage and exclusions.
One platform for both offerings
View received readings and historical records over your site network. Choose the relevant application Skills for industrial or irrigation workflows.
Plan power, networking and access
Confirm the Basestation location, power supply, site network, terminal coverage and user-access requirements before installation. Engineering will scope required accessories, commissioning and integration with your quote.
